PyQt5利用QPainter绘制各种图形的实例

yipeiwu_com6年前Python基础

这个例子我做了好几天：

1）官网C++的源码，改写成PyQt5版本的代码，好多细节不会转化

2）网上的PyQt的例子根本运行不了

填了无数个坑，结合二者，终于能完成了一个关于绘图的东西。这个过程也掌握了很多新的知识点

【知识点】

1、关于多个点的使用

poitns = [QPoint(10, 80), QPoint(20, 10), QPoint(80, 30), QPoint(90, 70)]

请看：

# 定义多个点
   points = [QPoint(10, 80), QPoint(20, 10), QPoint(80, 30), QPoint(90, 70)]

   # ===直接使用 points 会报错！=========
   # ...
   elif self.shape == self.Points:
      painter.drawPoints(points)

   elif self.shape == self.Polyline:
      painter.drawPolyline(points)

   elif self.shape == self.Polygon:
      painter.drawPolygon(points, 4)

   # ...

   # ===把 points 用 QPolygon()包裹起来才正确！=========
   # ...
   elif self.shape == self.Points:
      painter.drawPoints(QPolygon(points))

   elif self.shape == self.Polyline:
      painter.drawPolyline(QPolygon(points))

   elif self.shape == self.Polygon:
      painter.drawPolygon(QPolygon(points), 4)

   # ...

2、在QDialog窗体中显示QWidget部件

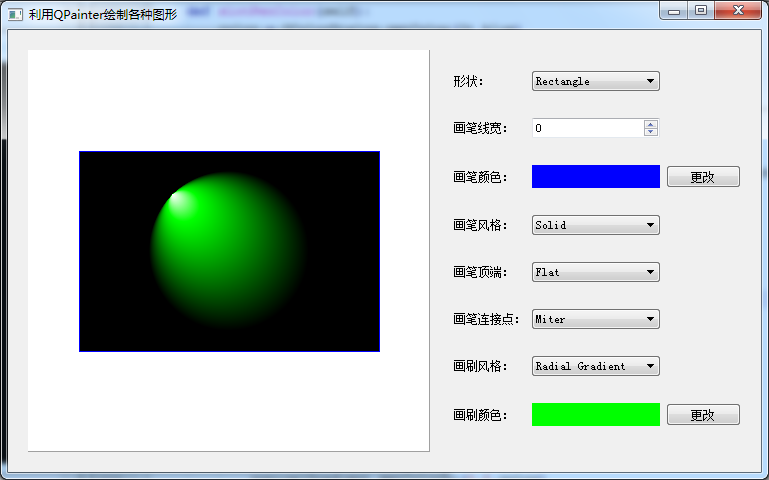

【效果图】

【资源】

//files.jb51.net/file_images/article/201710/brick.png
//files.jb51.net/file_images/article/201710/qt-logo.png

【代码】

import sys

from PyQt5.QtCore import *
from PyQt5.QtGui import *
from PyQt5.QtWidgets import *

class StockDialog(QWidget):
  def __init__(self, parent=None):
    super(StockDialog, self).__init__(parent)
    self.setWindowTitle("利用QPainter绘制各种图形")

    mainSplitter = QSplitter(Qt.Horizontal)
    mainSplitter.setOpaqueResize(True)

    frame = QFrame(mainSplitter)
    mainLayout = QGridLayout(frame)
    #mainLayout.setMargin(10)
    mainLayout.setSpacing(6)

    label1=QLabel("形状：")
    label2=QLabel("画笔线宽：")
    label3=QLabel("画笔颜色：")
    label4=QLabel("画笔风格：")
    label5=QLabel("画笔顶端：")
    label6=QLabel("画笔连接点：")
    label7=QLabel("画刷风格：")
    label8=QLabel("画刷颜色：")

    self.shapeComboBox = QComboBox()
    self.shapeComboBox.addItem("Line", "Line")
    self.shapeComboBox.addItem("Rectangle", "Rectangle")
    self.shapeComboBox.addItem('Rounded Rectangle','Rounded Rectangle')
    self.shapeComboBox.addItem('Ellipse','Ellipse')
    self.shapeComboBox.addItem('Pie','Pie')
    self.shapeComboBox.addItem('Chord','Chord')
    self.shapeComboBox.addItem('Path','Path')
    self.shapeComboBox.addItem('Polygon','Polygon')
    self.shapeComboBox.addItem('Polyline','Polyline')
    self.shapeComboBox.addItem('Arc','Arc')
    self.shapeComboBox.addItem('Points','Points')
    self.shapeComboBox.addItem('Text','Text')
    self.shapeComboBox.addItem('Pixmap','Pixmap')

    self.widthSpinBox = QSpinBox()
    self.widthSpinBox.setRange(0,20)

    self.penColorFrame = QFrame()
    self.penColorFrame.setAutoFillBackground(True)
    self.penColorFrame.setPalette(QPalette(Qt.blue))
    self.penColorPushButton = QPushButton("更改")

    self.penStyleComboBox = QComboBox()
    self.penStyleComboBox.addItem("Solid",Qt.SolidLine)
    self.penStyleComboBox.addItem('Dash', Qt.DashLine)
    self.penStyleComboBox.addItem('Dot', Qt.DotLine)
    self.penStyleComboBox.addItem('Dash Dot', Qt.DashDotLine)
    self.penStyleComboBox.addItem('Dash Dot Dot', Qt.DashDotDotLine)
    self.penStyleComboBox.addItem('None', Qt.NoPen)

    self.penCapComboBox = QComboBox()
    self.penCapComboBox.addItem("Flat",Qt.FlatCap)
    self.penCapComboBox.addItem('Square', Qt.SquareCap)
    self.penCapComboBox.addItem('Round', Qt.RoundCap)

    self.penJoinComboBox = QComboBox()
    self.penJoinComboBox.addItem("Miter",Qt.MiterJoin)
    self.penJoinComboBox.addItem('Bebel', Qt.BevelJoin)
    self.penJoinComboBox.addItem('Round', Qt.RoundJoin)

    self.brushStyleComboBox = QComboBox()
    self.brushStyleComboBox.addItem("Linear Gradient",Qt.LinearGradientPattern)
    self.brushStyleComboBox.addItem('Radial Gradient', Qt.RadialGradientPattern)
    self.brushStyleComboBox.addItem('Conical Gradient', Qt.ConicalGradientPattern)
    self.brushStyleComboBox.addItem('Texture', Qt.TexturePattern)
    self.brushStyleComboBox.addItem('Solid', Qt.SolidPattern)
    self.brushStyleComboBox.addItem('Horizontal', Qt.HorPattern)
    self.brushStyleComboBox.addItem('Vertical', Qt.VerPattern)
    self.brushStyleComboBox.addItem('Cross', Qt.CrossPattern)
    self.brushStyleComboBox.addItem('Backward Diagonal', Qt.BDiagPattern)
    self.brushStyleComboBox.addItem('Forward Diagonal', Qt.FDiagPattern)
    self.brushStyleComboBox.addItem('Diagonal Cross', Qt.DiagCrossPattern)
    self.brushStyleComboBox.addItem('Dense 1', Qt.Dense1Pattern)
    self.brushStyleComboBox.addItem('Dense 2', Qt.Dense2Pattern)
    self.brushStyleComboBox.addItem('Dense 3', Qt.Dense3Pattern)
    self.brushStyleComboBox.addItem('Dense 4', Qt.Dense4Pattern)
    self.brushStyleComboBox.addItem('Dense 5', Qt.Dense5Pattern)
    self.brushStyleComboBox.addItem('Dense 6', Qt.Dense6Pattern)
    self.brushStyleComboBox.addItem('Dense 7', Qt.Dense7Pattern)
    self.brushStyleComboBox.addItem('None', Qt.NoBrush)

    self.brushColorFrame = QFrame()
    self.brushColorFrame.setAutoFillBackground(True)
    self.brushColorFrame.setPalette(QPalette(Qt.green))
    self.brushColorPushButton = QPushButton("更改")

    labelCol=0
    contentCol=1

    #建立布局
    mainLayout.addWidget(label1,1,labelCol)
    mainLayout.addWidget(self.shapeComboBox,1,contentCol)
    mainLayout.addWidget(label2,2,labelCol)
    mainLayout.addWidget(self.widthSpinBox,2,contentCol)
    mainLayout.addWidget(label3,4,labelCol)
    mainLayout.addWidget(self.penColorFrame,4,contentCol)
    mainLayout.addWidget(self.penColorPushButton,4,3)
    mainLayout.addWidget(label4,6,labelCol)
    mainLayout.addWidget(self.penStyleComboBox,6,contentCol)
    mainLayout.addWidget(label5,8,labelCol)
    mainLayout.addWidget(self.penCapComboBox,8,contentCol)
    mainLayout.addWidget(label6,10,labelCol)
    mainLayout.addWidget(self.penJoinComboBox,10,contentCol)
    mainLayout.addWidget(label7,12,labelCol)
    mainLayout.addWidget(self.brushStyleComboBox,12,contentCol)
    mainLayout.addWidget(label8,14,labelCol)
    mainLayout.addWidget(self.brushColorFrame,14,contentCol)
    mainLayout.addWidget(self.brushColorPushButton,14,3)
    mainSplitter1 = QSplitter(Qt.Horizontal)
    mainSplitter1.setOpaqueResize(True)

    stack1 = QStackedWidget()
    stack1.setFrameStyle(QFrame.Panel|QFrame.Raised)
    self.area = PaintArea()
    stack1.addWidget(self.area)
    frame1 = QFrame(mainSplitter1)
    mainLayout1 = QVBoxLayout(frame1)
    #mainLayout1.setMargin(10)
    mainLayout1.setSpacing(6)
    mainLayout1.addWidget(stack1)

    layout = QGridLayout(self)
    layout.addWidget(mainSplitter1,0,0)
    layout.addWidget(mainSplitter,0,1)
    self.setLayout(layout)

    #信号和槽函数
    self.shapeComboBox.activated.connect(self.slotShape)
    self.widthSpinBox.valueChanged.connect(self.slotPenWidth)
    self.penColorPushButton.clicked.connect(self.slotPenColor)
    self.penStyleComboBox.activated.connect(self.slotPenStyle)
    self.penCapComboBox.activated.connect(self.slotPenCap)
    self.penJoinComboBox.activated.connect(self.slotPenJoin)
    self.brushStyleComboBox.activated.connect(self.slotBrush)
    self.brushColorPushButton.clicked.connect(self.slotBrushColor)

    self.slotShape(self.shapeComboBox.currentIndex())
    self.slotPenWidth(self.widthSpinBox.value())
    self.slotBrush(self.brushStyleComboBox.currentIndex())

  def slotShape(self,value):
    shape = self.area.Shape[value]
    self.area.setShape(shape)

  def slotPenWidth(self,value):
    color = self.penColorFrame.palette().color(QPalette.Window)
    style = Qt.PenStyle(self.penStyleComboBox.itemData(self.penStyleComboBox.currentIndex(),Qt.UserRole))
    cap = Qt.PenCapStyle(self.penCapComboBox.itemData(self.penCapComboBox.currentIndex(),Qt.UserRole))
    join = Qt.PenJoinStyle(self.penJoinComboBox.itemData(self.penJoinComboBox.currentIndex(),Qt.UserRole))
    self.area.setPen(QPen(color,value,style,cap,join))

  def slotPenStyle(self,value):
    self.slotPenWidth(value)

  def slotPenCap(self,value):
    self.slotPenWidth(value)

  def slotPenJoin(self,value):
    self.slotPenWidth(value)

  def slotPenColor(self):
    color = QColorDialog.getColor(Qt.blue)
    self.penColorFrame.setPalette(QPalette(color))
    self.area.setPen(QPen(color))

  def slotBrushColor(self):
    color = QColorDialog.getColor(Qt.blue)
    self.brushColorFrame.setPalette(QPalette(color))
    self.slotBrush(self.brushStyleComboBox.currentIndex())

  def slotBrush(self,value):
    color = self.brushColorFrame.palette().color(QPalette.Window)
    style = Qt.BrushStyle(self.brushStyleComboBox.itemData(value,Qt.UserRole))

    if(style == Qt.LinearGradientPattern):
      linearGradient = QLinearGradient(0,0,400,400)
      linearGradient.setColorAt(0.0,Qt.white)
      linearGradient.setColorAt(0.2,color)
      linearGradient.setColorAt(1.0,Qt.black)
      self.area.setBrush(linearGradient)
    elif style ==Qt.RadialGradientPattern:
      radialGradient = QRadialGradient(200, 200, 80, 70, 70);
      radialGradient.setColorAt(0.0, Qt.white)
      radialGradient.setColorAt(0.2, Qt.green)
      radialGradient.setColorAt(1.0, Qt.black)
      self.area.setBrush(radialGradient)
    elif(style == Qt.ConicalGradientPattern):
      conicalGradient = QConicalGradient(200,200,30)
      conicalGradient.setColorAt(0.0,Qt.white)
      conicalGradient.setColorAt(0.2,color)
      conicalGradient.setColorAt(1.0,Qt.black)
      self.area.setBrush(conicalGradient)
    elif(style == Qt.TexturePattern):
      self.area.setBrush(QBrush(QPixmap("images/brick.png")))
    else:
      self.area.setBrush(QBrush(color,style))


class PaintArea(QWidget):
  def __init__(self):
    super(PaintArea,self).__init__()
    self.Shape = ["Line","Rectangle", 'Rounded Rectangle', "Ellipse", "Pie", 'Chord',
  "Path","Polygon", "Polyline", "Arc", "Points", "Text", "Pixmap"]
    self.setPalette(QPalette(Qt.white))
    self.setAutoFillBackground(True)
    self.setMinimumSize(400,400)
    self.pen = QPen()
    self.brush = QBrush()

  def setShape(self,s):
    self.shape = s
    self.update()

  def setPen(self,p):
    self.pen = p
    self.update()

  def setBrush(self,b):
    self.brush = b
    self.update()

  def paintEvent(self,QPaintEvent):
    p = QPainter(self)
    p.setPen(self.pen)
    p.setBrush(self.brush)

    rect = QRect(50,100,300,200)
    points = [QPoint(150,100),QPoint(300,150),QPoint(350,250),QPoint(100,300)]
    startAngle = 30 * 16
    spanAngle = 120 * 16

    path = QPainterPath();
    path.addRect(150,150,100,100)
    path.moveTo(100,100)
    path.cubicTo(300,100,200,200,300,300)
    path.cubicTo(100,300,200,200,100,100)

    if self.shape == "Line":
      p.drawLine(rect.topLeft(),rect.bottomRight())
    elif self.shape == "Rectangle":
      p.drawRect(rect)
    elif self.shape == 'Rounded Rectangle':
      p.drawRoundedRect(rect, 25, 25, Qt.RelativeSize)
    elif self.shape == "Ellipse":
      p.drawEllipse(rect)
    elif self.shape == "Polygon":
      p.drawPolygon(QPolygon(points),Qt.WindingFill)
    elif self.shape == "Polyline":
      p.drawPolyline(QPolygon(points))
    elif self.shape == "Points":
      p.drawPoints(QPolygon(points))
    elif self.shape == "Pie":
      p.drawPie(rect, startAngle, spanAngle)
    elif self.shape == "Arc":
      p.drawArc(rect,startAngle,spanAngle)
    elif self.shape == "Chord":
      p.drawChord(rect, startAngle, spanAngle)
    elif self.shape == "Path":
      p.drawPath(path)
    elif self.shape == "Text":
      p.drawText(rect,Qt.AlignCenter,"Hello Qt!")
    elif self.shape == "Pixmap":
      p.drawPixmap(150,150,QPixmap("images/qt-logo.png"))

if __name__=='__main__':
  app = QApplication(sys.argv)
  form = StockDialog()
  form.show()
  app.exec_()

以上这篇PyQt5利用QPainter绘制各种图形的实例就是小编分享给大家的全部内容了，希望能给大家一个参考，也希望大家多多支持【听图阁-专注于Python设计】。

返回列表

上一篇：Python字符转换

下一篇：PHP生成静态页面详解

相关文章

Python2.x版本中基本的中文编码问题解决

Python 输出 "Hello, World!"，英文没有问题，但是如果你输出中文字符"你好，世界"就有可能会碰到中文编码问题。 Python 文件中如果未指定编码，在执行过程会出现报...

Python简直是万能的，这5大主要用途你一定要知道！（推荐）

从2015开始国内就开始慢慢接触Python了，从16年开始Python就已经在国内的热度更高了，目前也可以算的上"全民Python"了。 众所周知小学生的教材里面已经有Python了，...

Python中的两个内置模块介绍

使用了Python一段时间后，可以说Python的基本单位就是模块了，在使用模块的时候我们一般会使用通过import语句来将其导入，但是我们在没有导入任何模块的时候，我们却能使用这样的一...

安装Python和pygame及相应的环境变量配置(图文教程)

安装Python和pygame及相应的环境变量配置(图文教程)

Hello，Everyone！ Python是个好东西！好吧，以黎某人这寒碜的赞美之词，实在上不了台面，望见谅。那我们直接来上干货吧。 第一步：下载Python安装包https://ww...

python获取网页状态码示例

代码很简单，只需要2行代码就可实现想要的功能，虽然很短，但确实使用，主要使用了requests库。 测试2XX, 3XX, 4XX, 5XX都能准确识别。 复制代码 代码如下:#codi...

© YiPeiWu.com 【宜配屋】 粤ICP备17031333号

Powered By Z-BlogPHP. Theme by TOYEAN.
